Attributes

JSON Attributes¶

Some users have provided feedback that renaming class names and field names is currently quite annoying because it has to be done manually by editing the serialized JSON. So, in v2.2.0, we introduce these attributes to make renaming class names and field names easier and faster.

Info

You can use these attributes for input, input normalizations, action tasks and target filters.

ClassFormerlySerializedAs¶

To change a class name from CarlosLab.OldNamespace.OldActionTask to CarlosLab.NewNamespace.NewActionTask, you need to pass the old class name and the old namespace to the constructor of ClassFormerlySerializedAs:

namespace CarlosLab.NewNamespace
{
    [ClassFormerlySerializedAs(oldClassName:"OldActionTask", oldNamespace:"CarlosLab.OldNamespace")]
    public class NewActionTask : ActionTask
    {
    }
}

If the namespace remains unchanged, you only need to pass the old class name:

namespace CarlosLab.Unchanged
{
    [ClassFormerlySerializedAs(oldClassName:"OldActionTask")]
    public class NewActionTask : ActionTask
    {
    }
}

FieldFormerlySerializedAs¶

To change a field name from OldField to NewField, you need to pass the old field name to the constructor of FieldFormerlySerializedAs:

public class NewActionTask : ActionTask
{
    [FieldFormerlySerializedAs("OldField")]
    public int NewField;
}

Field Attributes¶

We have received feedback that it’s currently hard to read our classes as they become more complex and have a lot of fields. So, in v2.2.0, we added these attributes to help you organize your fields in the Intelligence Editor.

Info

You can use these attributes in input, input normalizations, action tasks and target filters.

BoxGroup & FoldoutGroup¶

BoxGroup and FoldoutGroup attributes are used to group fields in the Intelligence Editor.

public class TestGroupTask : ActionTask
{
    [BoxGroup("Group1")]
    public string Field1;

    [BoxGroup("Group1")]
    public int Field2;

    [BoxGroup("Group1")]
    public float Field3;

    [FoldoutGroup("Group2")]
    public string Field4;

    [FoldoutGroup("Group2")]
    public int Field5;

    [FoldoutGroup("Group2")]
    public float Field6;
}

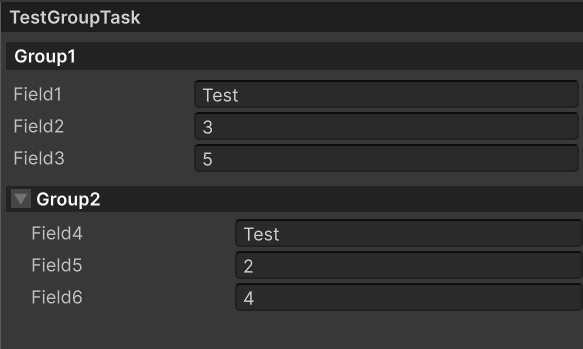

Here’s how it looks in the Intelligence Editor:

ShowIf & HideIf¶

ShowIf and HideIf attributes are used to show/hide fields in the Intelligence Editor. These attributes allow users to display fields based on conditions. You can use them for basic types, such as bool, enum, string, float, and int.

Here are examples of how to use these attributes with bool type and enum type:

Bool¶

public class TestBoolTask : ActionTask
{
    public bool Toggle;

    [ShowIf("Toggle")]
    public int ShowIfToggleDefault;

    [ShowIf("Toggle", true)]
    public float ShowIfToggleTrue;

    [ShowIf("Toggle", false)]
    public int ShowIfToggleFalse;

    [HideIf("Toggle")]
    public float HideIfToggleDefault;

    [HideIf("Toggle", true)]
    public float HideIfToggleTrue;

    [HideIf("Toggle", false)]
    public int HideIfToggleFalse;
}

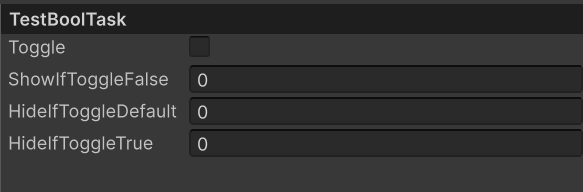

Here’s how it looks in the Intelligence Editor:

Enum¶

public enum TestEnum
{
    Type1,
    Type2,
    Type3,
}

public class TestEnumTask : ActionTask
{
    public TestEnum Type;

    [ShowIf("Type")]
    public bool ShowIfTypeDefault;

    [ShowIf("Type", TestEnum.Type1)]
    public bool ShowIfType1;

    [ShowIf("Type", TestEnum.Type2)]
    public float ShowIfType2;

    [ShowIf("Type", TestEnum.Type3)]
    public int ShowIfType3;

    [HideIf("Type")]
    public bool HideIfTypeDefault;
    [HideIf("Type", TestEnum.Type1)]
    public bool HideIfType1;

    [HideIf("Type", TestEnum.Type2)]
    public float HideIfType2;

    [HideIf("Type", TestEnum.Type3)]
    public int HideIfType3;
}

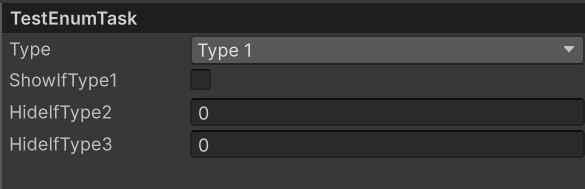

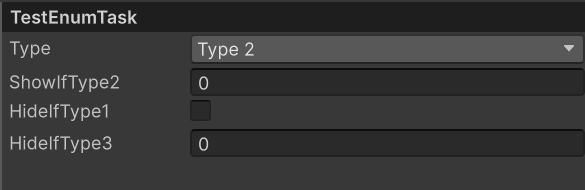

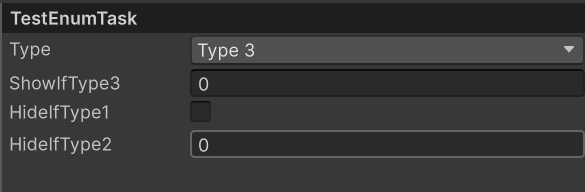

Here’s how it looks in the Intelligence Editor:

Category Attribute¶

Category attribute is used to group your classes into categories. You can check how to use it here: Category Attribute.

If you haven’t already, please consider leaving a review on the Asset Store. Whether good or bad, your feedback helps shape the future of this framework, and lets others determine whether it’s a good fit for their games. Thank you so much!💘 I love you all!🥰
