Input Normalizations

Since an input can vary widely in value, so we need a tool to normalize it into a fixed range [0,1]. This is where input normalizations come into play. This step is crucial because it ensures that decisions are scored on a consistent scale, allowing us to compare their scores and select the highest-scoring decision.

Creating Input Normalizations¶

To create a new input normalization, define a new class that inherits from InputNormalization<TValue> and override the OnCalculateNormalizedInput method. For example:

[Category("Range")]
public class IsInRangeNormalizationFloat : InRangeNormalization<float>
{
    protected override float OnCalculateNormalizedInput(float rawInput, in InputNormalizationContext context)
    {
        float normalizedInput = rawInput >= MinValue && rawInput <= MaxValue ? 1.0f : 0.0f;
        return normalizedInput;
    }
}

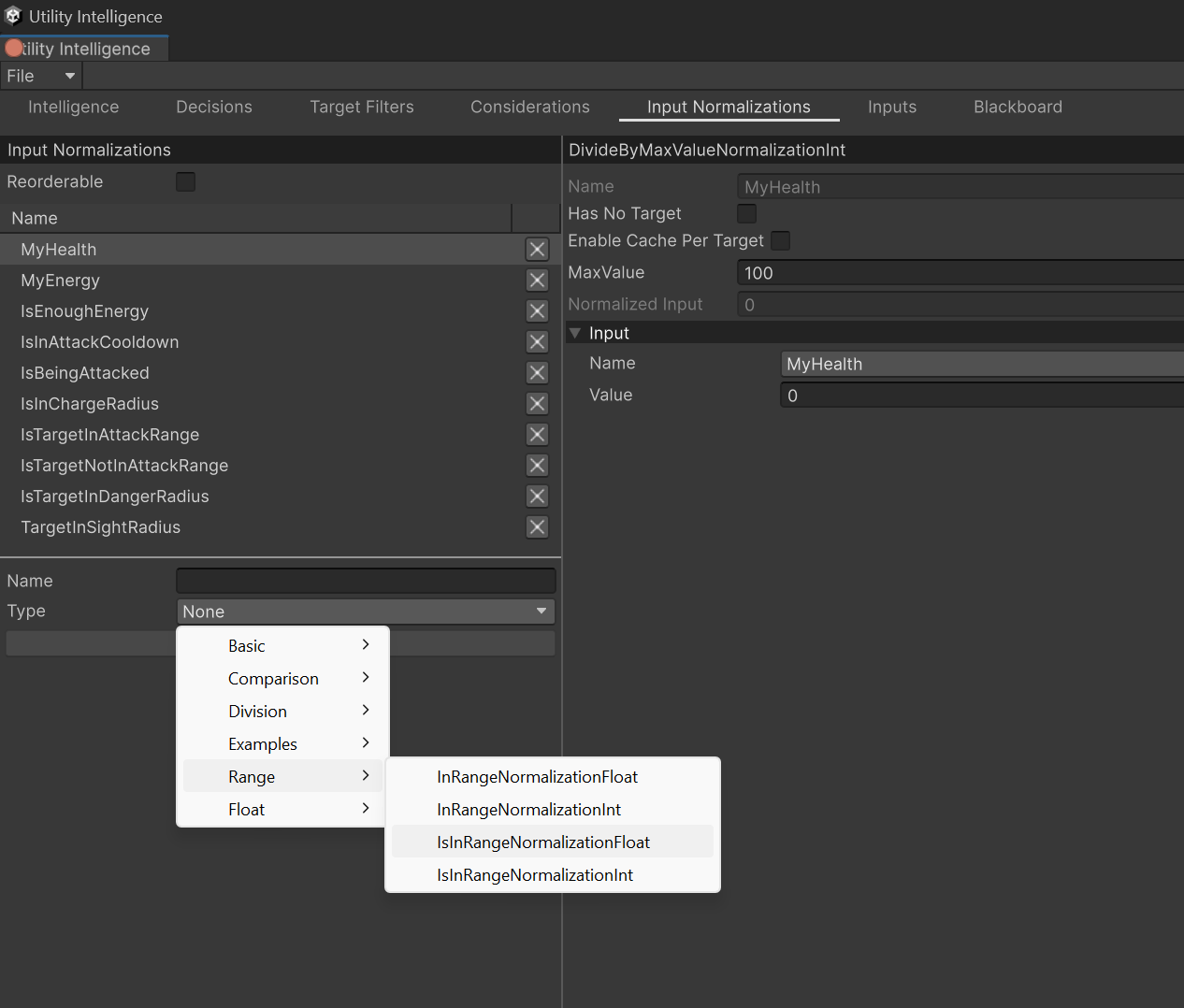

To add the input normalization to the intelligence asset, go to the Input Normalization Tab, select the input normalization type, give it a name, and then click the Create button:

To attach an input normalization to a consideration, select the consideration in the Consideration Tab, and then choose the input normalization’s name from the dropdown menu:

Adding Parameter Fields¶

There are many cases when you need to add parameters to an input normalization to customize how it normalizes its input value. To achieve this, you need to declare these parameters as public fields in your input normalizations. Here are some examples of how to do this:

public class IsInCooldownNormalization : InputNormalization<float>
{
    public VariableReference<float> CooldownDuration;

    protected override float OnCalculateNormalizedInput(float rawInput, in InputNormalizationContext context)
    {
        if (rawInput <= CooldownDuration)
            return 1.0f;
        else
            return 0.0f;
    }
}

public abstract class InRangeNormalization<TValue> : InputNormalization<TValue>
{
    public VariableReference<TValue> MinValue;
    public VariableReference<TValue> MaxValue;
}

[Category("Range")]
public class InRangeNormalizationFloat : InRangeNormalization<float>
{
    protected override float OnCalculateNormalizedInput(float rawInput, in InputNormalizationContext context)
    {
        var diff = MaxValue - MinValue;
        if (diff <= 0.0f) return 0.0f;

        float normalizedInput = (rawInput - MinValue) / (diff);
        return normalizedInput;
    }
}

[Category("Range")]
public class InRangeNormalizationInt : InRangeNormalization<int>
{
    protected override float OnCalculateNormalizedInput(int rawInput, in InputNormalizationContext context)
    {
        var diff = MaxValue - MinValue;
        if (diff <= 0) return 0.0f;

        float normalizedInput = (float)(rawInput - MinValue) / (diff);
        return normalizedInput;
    }
}

Built-in Input Normalizations¶

We provides a lot of built-in input normalizations to help you normalize your inputs without having to write a single line of code:

• Float
  • BasicNormalizationFloat: Clamps the input value into [0, 1]
  • DivideByMaxValueFloat: Divides the input by MaxValue.
  • GreaterThanOrEqualToValueFloat: Returns 1 if the input value is greater than Value; otherwise, returns 0.
  • LessThanOrEqualToValueFloat: Returns 1 if the input value is less than the Value; otherwise, returns 0.
  • InRangeFloat: Maps the input value from [MinValue, MaxValue] to [0, 1]. Note that if the input value is above MaxValue, then the normalized value is 1, and if the input value is below MaxValue, then the normalized value is 0.
  • IsInRangeFloat: Returns 1 if the input value is in the range [MinValue, MaValue]; otherwise, returns 0.
  • IsInCooldownNormalization: Returns 1 if the input (CooldownElapsedTimeInput) is within the cooldown duration; otherwise, returns 0.
• Int
  • Similar to the floats
• Bool
  • BasicNormalizationBool: Returns 1 if the input value is true; otherwise, returns 0.
